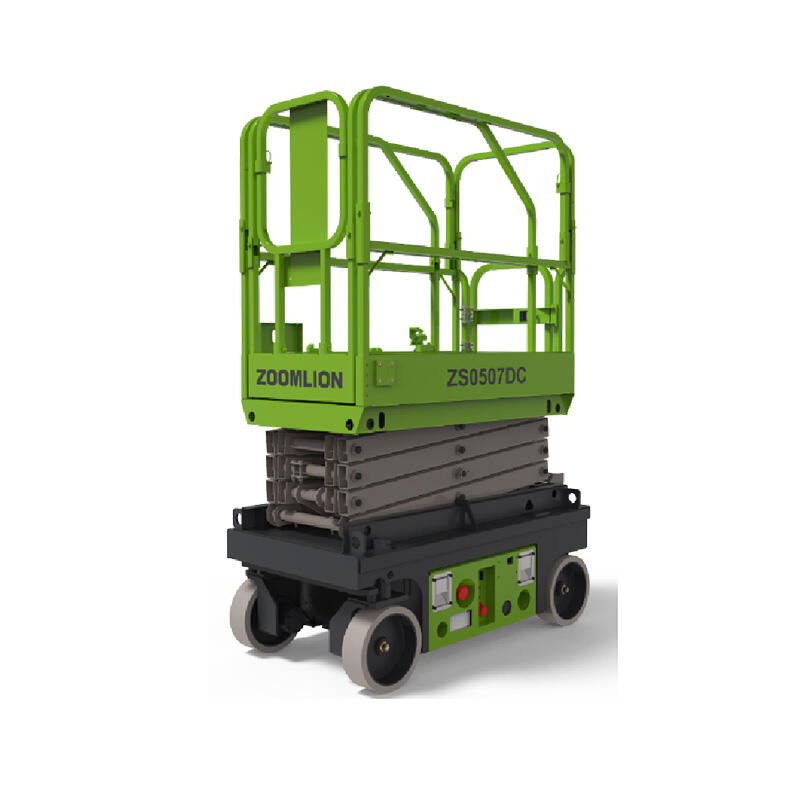

ZS0507DC
The whole machine is light in weight and small in size, not limited by the elevator load, and can freely enter and exit the building passenger elevator.
Description
Comply with GB/CE standards
Product highlights
● Efficient operation
● The industry-leading 6.5m working height and high operating efficiency;
● The all-electric driving system is energy-saving and environmentally friendly, noise-free, and suitable for indoor operations;
● The whole machine is light in weight and small in size, not limited by the elevator load, and can freely enter and exit the building passenger elevator.
● Low cost of ownership
● The joints are lubrication-free and maintenance-free;
● The integral drawer-type tray is convenient for maintenance
● Intelligent interconnection
● The remote monitoring and rental system can easily obtain equipment information and effectively manage operations.
Product Configuration
Standard Configuration | ||
GPS |
Automatic braking system |
Full travel |
Proportional control |
Emergency descent system |
Work schedule |
Action buzzer |
Emergency stop button |
One-way extension platform |
Folding fence |
Fault diagnosis system |
Charging protection system |
Working strobe light |
Tilt protection system |
Safety access support bar |
Platform self-locking door |
Automatic pothole protection |
Standard transport forklift hole |
Remote monitoring and rental management platform |
Maintenance-free battery |
|
<br>
Model |
Z50507DC |
Size | |
Maximum working height |
6.5m |
A Maximum platform height |
4.5m |
B Minimum platform height |
0.95m |
C Working platform length |
1.29m |
D Working platform width |
0.7m |
Platform extension size |
0.6m |
E Machine height (guardrail raised) |
2.12m |
Machine height (guardrail folded) |
1.77m |
F Machine length |
1.53m |
G Machine width |
0.76m |
H Wheelbase |
1.11m |
1 Minimum ground clearance (stowed state) |
0.06m |
J Minimum ground clearance (lifted state) |
0.017m |
Performance | |
Rated load |
240kg |
Extended platform safe working load |
100kg |
Maximum number of workers |
2 |
Travel speed (stowed state) |
4km/h |
|
|
Travel speed (lifted state) |
0.Bkm/h |
Turning radius - inside |
04m |
Turning radius - outside |
1.6m |
Lifting motor |
24V/1.ZKW |
Drive motor |
24V/2×0.45KW |
Ascending/descending time |
23/25S |
Maximum climbing ability |
25%/14°) |
Maximum working angle (lateral/longitudinal) |
1.5°/3° |
Control |
Proportional control |
Drive |
Dual rear wheels |
Multi-disc brakes |
Dual rear wheels |
Tires |
305mm×100mm |
Power | |
Battery |
2×12V/85Ah |
Charger |
24V/15A |
Weight | |
Machine weight |
895kg |
